CANNY 7.2 Duo, ADC Driver

General Description

CANNY 7.2 Duo supports Analog-to-Digital Converter (ADC) mode through one special contact on the board. The ADC pin can be connected to pin 1 of the X3 connector (channel 8) through a special pad.

This ADC converter has about 110k input impedance and can be used to measure an input voltage from 0 to 32V with 12-bit resolution and 1 millisecond sample rate.

ADC driver is always active.

It is possible to determine the Main Power Input voltage of the controller, for which a separate ADC is used. Information on the value of the ADC power supply of the controller is available in a special register.


The ADC driver registers contain information about the state of the channel. Below is a description of the return values.

ADC channel registers.
Register Return Values
ADC Channel Input Value Register 0…4095 = measured ADC value
ADC Main Power Input Voltage Value Register, mV 0…32760 = measured Main Power Input Voltage value in millivolts

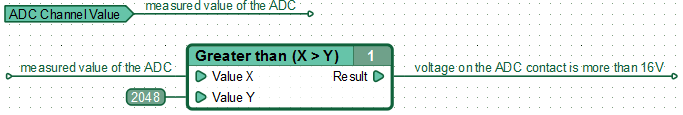

Function diagram for obtaining the results of an analog-to-digital conversion.

Note: The analog-to-digital converter of the CANNY 7.2 Duo controller is linear.

Note: The voltage values at the ADC contact are measured by the controller at regular intervals. In the time period between measurements, the ADC value register retains the previously measured value.
