Switch 1-to-8

Classification Images
Name:
Switch 1-to-8

Symbol:
COM18

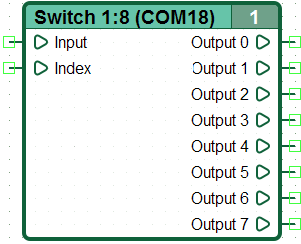

 Appearance:

Appearance.
Group:
Switches

CannyLab version:
from 0.6b		 Icon:

Icon.
Inputs
Input Value
Input: Integer
Output: Integer
Outputs
Output Value
Input 0…7: Integer

General description

Sets the output value equal to the input value, determines the Input # by “Index” value.

Features

If the input “Index” exceeds the number of available inputs, the output value sets to a zero.

Examples

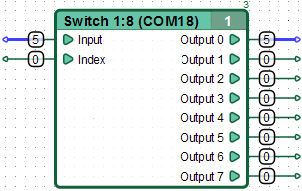

Example 1:

Example 1.

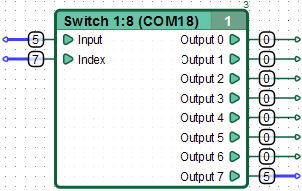

Example 2:

Example 2.
