Minimum

Classification	Images

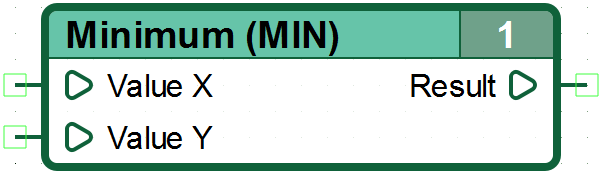

Name: Minimum Symbol: MIN	Appearance:
Group: Relational operators CannyLab version: from 2.10	Icon:

Inputs

Input	Value
Value X:	Integer
Value Y:	Integer

Outputs

Output	Value
Result:	Integer

Copies the smaller of X and Y values to the Result output.

Operation results
The ratio of X & Y values	Operation result
X > Y	Y
X <= Y	X

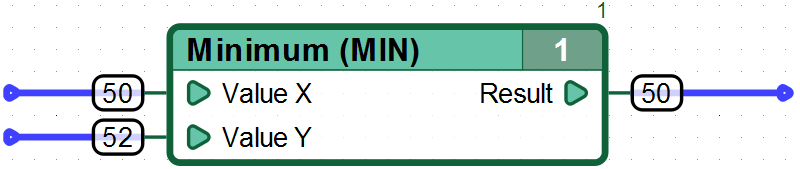

Example 1:

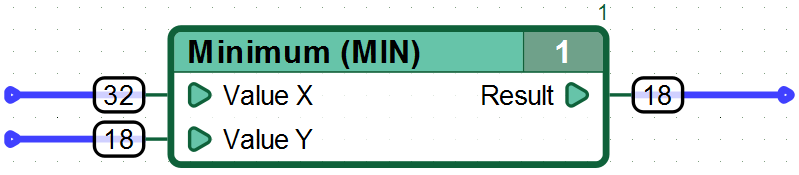

Example 2:

Reference guide > CFD Language and Function Blocks > Relational operators > Minimum
