Converter 1-to-8

Classification	Images

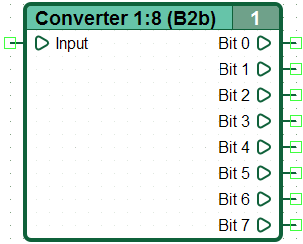

Name: Converter 1-to-8 Symbol: B2b	Appearance:
Group: Converters CannyLab version: from 0.6b	Icon:

Inputs

Input	Value
Output:	Integer

Outputs

Output	Value
Bit 0…Bit 7:	Logical

Sets the output bits value in accordance with respective bits in binary representation of the input value.

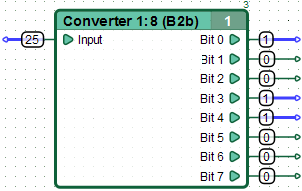

Decimal 25 = 0b00011001 binary:
