Integer to ASCII

Classification Images
Name:
Integer to ASCII

Symbol:
ITOA

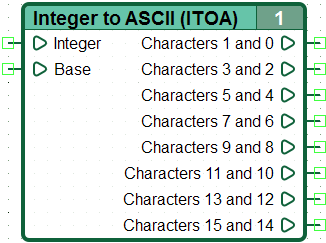

Appearance:

Appearance.
Group:
Converters

CannyLab version:
from 1.8
Icon:

Icon.
Inputs
Input Value
Integer: Integer
Base: Integer
Outputs
Output Value
Characters 1 & 0: A pair of ASCII characters
Characters 15 & 14: A pair of ASCII characters

General description

Converts a numeric value in to a hexadecimal string representation of the specified base 2, 10 or 16.

Features

Symbols resultant, flattened on the right edge of the string representation specified on the input number, are set at the respective outputs in upper register, unused upper bits are filled with the symbols “0”.

In the case of using an invalid base value, the output value will be set to “0000000000000000”.

Examples

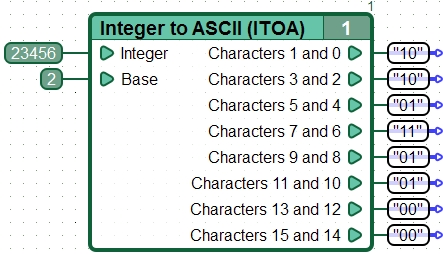

23456 base 2 = «0101101110100000».
23456 base 10 = «0000000000023456».
23456 base 16 = «0000000000005BA0».

Notes

With the release of CANNY Lab version 1.8 a new data presentation added - “A pair of characters” in which the values are represented by two characters ASCII with the codes given by high and low bytes of displaying 16-bit value .

For example, the decimal number 19278 corresponding hexadecimal 0x4B4E, displayed a pair of characters «KN», having ASCII-code 0x4B, and 0x4E respectively.
