Switch 1-to-16

Classification	Images

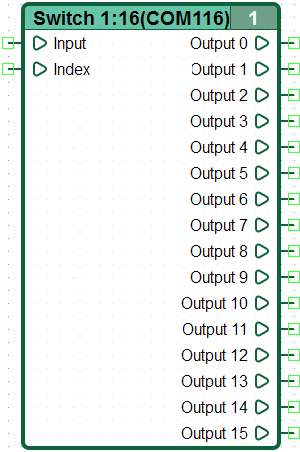

Name: Switch 1-to-16 Symbol: COM116	Appearance:
Group: Switches CannyLab version: from 0.6b	Icon:

Inputs

Input	Value
Input:	Integer
Output:	Integer

Outputs

Output	Value
Input 0…15:	Integer

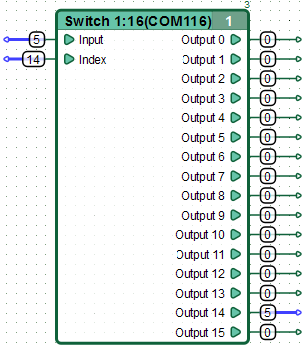

Sets the output value equal to the input value, determines the Input number by “Index” value.

If the input “Index” exceeds the number of available inputs, the output value sets to a zero.

Reference guide > CFD Language and Function Blocks > Switches > Switch 1-to-16
