Switch 16-to-1

Classification	Images

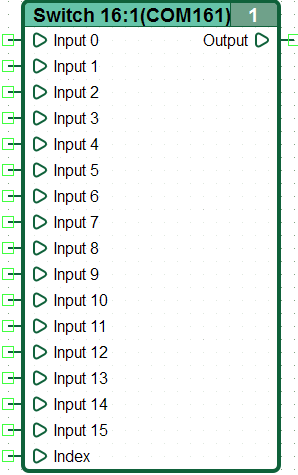

Name: Switch 16-to-1 Symbol: COM161	Appearance:
Group: Switches CannyLab version: from 0.6b	Icon:

Inputs

Input	Value
input 0…15:	Integer
Output:	Integer

Outputs

Output	Value
Output:	Integer

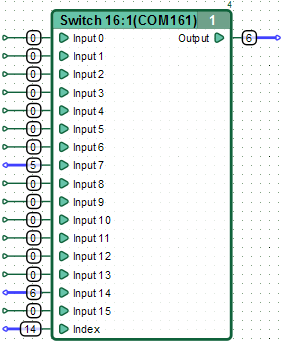

Sets the output, determined by “Index” value, a value equal to the “Input” value, the rest of the output is set to zero.

If the input “Index” exceeds the number of available outputs, all of the output values sets to a zero.
