Converter 1-to-16

Classification Images
Name:
Converter 1-to-16

Symbol:
W2b

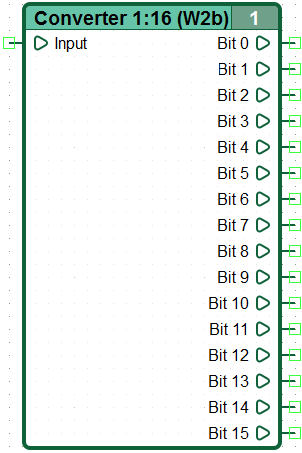

 Appearance:

Appearance.
Group:
Converters

CannyLab version:
from 0.6b		 Icon:

Icon.
Inputs
Input Value
Input: Integer
Outputs
Output Value
Bit 0…Bit 15: Logical

General description

Sets the output bits value in accordance with respective bits in binary representation of the input value.

Examples

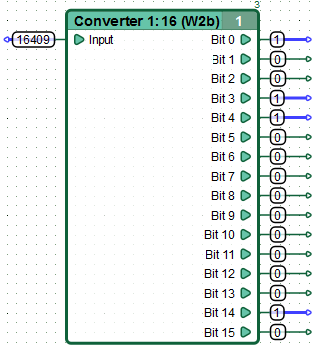

Decimal 16409 = 0b0100000000011001 binary:

Example. Decimal 16409 = 0b0100000000011001 binary.
