Converter 16-to-1

Classification Images
Name:
Converter 16-to-1

Symbol:
b2W
 Appearance:

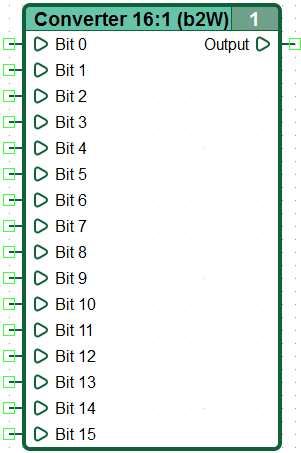

Appearance.
Group:
Converters

CannyLab version:
from 0.6b		 Icon:

Icon.
Inputs
Input Value
Bit 0…Bit 15: Logical
Outputs
Output Value
Output: Integer

General description

Sets bits of output value in the binary representation in accordance with respective input values..

Features

The block can be used as a multi-channel «Logical OR» (see T-n-T: Polyadic «Logical OR») or as a multichannel «Logical AND» (see T-n-T: Polyadic «Logical AND»).

Examples

Binary 0b0100000000011001 = 16409 decimal:

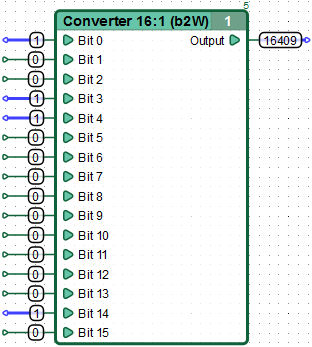

Example. Binary 0b0100000000011001 = 16409 decimal.
