T-n-T: Logical AND with multiple operands

Implement “Logical AND” operation with eight operands.

• The problem
• Obvious solution
• Alternative solution

The problem

It is required to check the simultaneous fulfillment of 8 conditions.

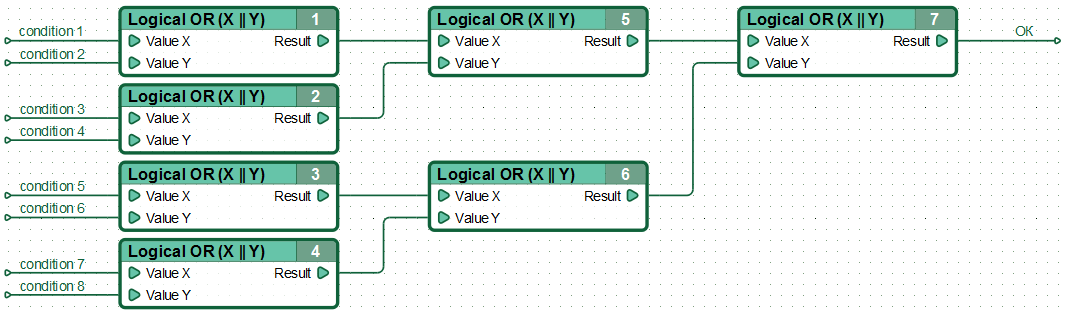

Obvious solution

7 functional blocks were used.

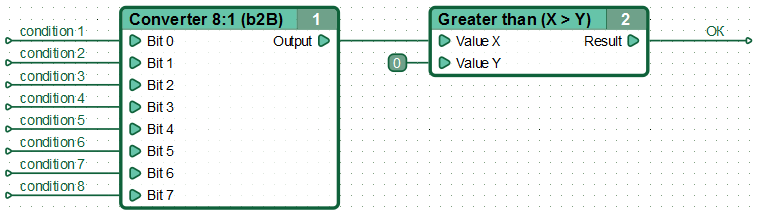

Alternative solution

The number of function blocks is reduced to 2.
